SSCD500-1500/3800 500KW 3800rpm AC Dynamometer

Name: SSCD50015003800 500KW 3800rpm AC Dynamometer
Brand: SEELONG
Price: 1 USD

Brand Name : SEELONG

Model Number : SSCD500-1500/3800

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : Confidential

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 8-12 weeks

Packaging Details : 1200mmX2000mmX1800mm wooden box per set

Power : 500KW

Rated torque : 3183Nm

Max working speed : 3800rpm

Contact Now

SSCD500-1500/3800 Widely Used AC Dynamometer

Introduction

The motor that converts the alternating current into mechanical power by using an electromagnetic induction phenomenon is called an AC motor. This motor is driven by an alternating current. The stator and the rotor are the two most important parts of the AC motors. The stator is the stationary part of the motor, and the rotor is the rotating part of the motor. The AC motor may be single phase or three phase.

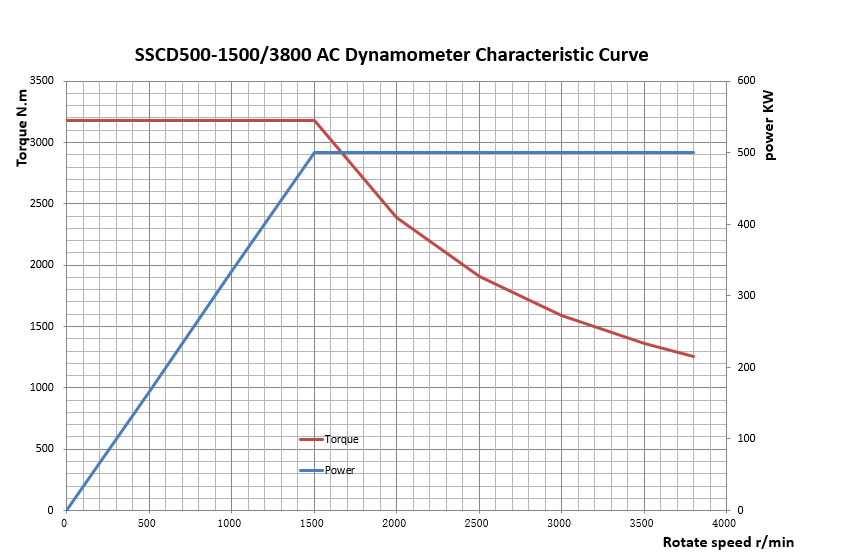

Characteristic curve

SSCD500-1500/3800 500KW 3800rpm AC Dynamometer
