Product description

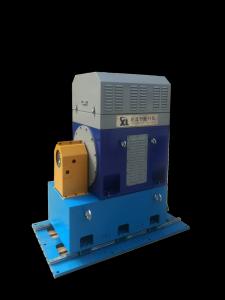

SSCG90-3000/10000 electric dynamometer test bench system mainly consists of base, electric dynamometer, motor flange, torque sensor (torque flange and torque flange antenna), torque flange base, locking shaft support plate, lock sleeve, protective cover and locking shaft pins, couplings, bearing seat and test motor bracket.
SSCG90-3000/10000 electric dynamometer is an indoor test system with high precision and high repeatability, whose main goal is to test the performance of heavy duty gasoline engine. Through the efficient control system, all test operations can be completed by computer control instructions. High speed data communication module makes the system have higher real-time performance. SSCG series dynamometer has the characteristics of low speed, high torque and high dynamic response.
Its working principle is to invert the AC power from the electric dynamometer into DC power through the DTC inverter and then invert it into AC power for grid connection; DTC variable frequency inverter system adjusts the power grid current of the electric dynamometer to control the speed and torque of the prime mover. For example, when used together with the test and control system produced by Seelong, it can not only accurately measure and control the speed and torque of various rotating power machinery, but also can measure and control the temperature, pressure, flow, current, voltage, and other parameters.
SSCG90-3000/10000 electric dynamometer has two important features:
First, use the direct torque control technology to implement torque control on the AC dynamometer;
Second, when the AC dynamometer is in the power generation state, the electric energy is sent back to the grid.
SSCG90-3000/10000 electric dynamometer technical parameters
| Item | Electric dynamometer parameters |
| Model | SSCG90-3000/10000 |
| Brand | Seelong |
| Rated Power (kW) | 90 |
| Rated Torque (Nm) | 286 |
| Constant Torque Speed Range (rpm) | 0-3000 |
| Constant Power Speed Range (rpm) | 3000-10000 |
| Max Working Speed (rpm) | 10000 |
| Over-speed capacity | 120% |
| Rated voltage (V) | AC 380 |
| Rated current (A) | 169 |
| Heat-dissipating method | Forced cooling |
| Torque Measurement Accuracy
(%FS) | 0.05/0.2/0.5 %FS |
| Encoder | Shanghai Jingfen |
| Model of encoder | HTL 512 |
| Can be customized |
SSCG90-3000/10000 Electric Dynamometers Technical Features:
- Small size, easy installation;
- Simple structure, easy operation and maintenance;
- High braking moment;
- High accuracy of measurement;
- Work stably and reliably;
- Achieving High Precision Instantaneous Speed Measurement with Magnetoelectric Velocity Sensor;
- Fast Load Control of Electronically Controlled
- Fast response, suitable for dynamic test
SSCG90-3000/10000 electric dynamometer benefits
- It can be used as loading equipment and prime mover. It can drive and absorb power in both directions of rotation, so it is convenient to center (motor suspension) during installation
- Measurement accuracy: speed ± 1 R / min; torque ± 0.2% FS
- Loading stability: constant torque loading stability is better than 0.2%, constant speed driving is better than 0.1%
- Overload capacity: 120%
- Excellent loading performance: constant torque loading can be maintained from zero speed to rated speed, and constant power loading can be maintained above rated speed.
- Low moment of inertia and high overload capacity make the dynamometer have high dynamic response speed, the dynamic response speed is less than 5ms
